Regular price $2,375.00 Sale price$2,100.00 Save 12%
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): XS1HD
MFR Part # (MPN): XS-1HD

Short Description:

A versatile and compact switcher with multi-screen output and video composting. A multi-format matrix switcher with scalers that supports up to full HD.

  • Free Shipping & Tech Support

The Roland XS-1HD is a compact multi-format matrix switcher that combines the power of the popular XS AV Matrix Series and the size and features of the V-1 video switcher series. The XS-1HD provides multi-screen output destinations for confidence monitor, main and side screens and overflow rooms. The XS-1HD features four HDMI inputs with scalers and scaled outputs allwhile measuring just under 13 inches x 4.5 inches x 1.4 inches in size. It is power packed with professional live production tools that include keying and picture-in-picture effects with full HD support.

MAIN FEATURES

  • A table-top matrix switcher that's the width of a 13” laptop, equipped with four HDMI inputs and outputs
  • High-quality 4:4:4/10-bit processing at up to WUXGA/1080p
  • Frame synchronizer and scaler on all inputs
  • Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs
  • Switcher Mode allows PinP, key-compositing, and dissolve transitions
  • Split Mode allows PinP of up to three inset windows
  • Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input
  • Built-in EDID emulator, and HDCP-compliant
  • Still images can be loaded from a USB flash drive

LIVE EVENTS

The XS-1HD is ideal for supporting live event productions that involve a variety of video signals. A high quality scaler is provided on each input, allowing for fast setup. At only the width of a 13” laptop computer, the XS-1HD allows realtime operation in even the most space-limited working environments.

Exhibits

The XS-1HD can switch video from up to four sources such as cameras, computers, or media players, and freely assign them to LCD displays or projectors. A built-in scaler on each input means that the position or zoom can be adjusted even if the video signals being input have different formats. Since an EDID emulator is built-in, the correct resolution will be sent from computers to the switcher. You can instantly change the what is being sent to any display by recalling previously-saved preset memories as the event progresses or when appropriate for the situation.

Stage Events / Conferences

Matrix mode lets you switch to a total of four output destinations, such as a main screen, a secondary screen, a monitor for the presenter, and a digital signage for general information. Switcher mode is convenient when the operator requires traditional realtime switching capability with a multiview preview, PinP, key-compositing, and dissolve transitions.

INSTALLED SYSTEMS

The XS-1HD is ideal for banquet venues, halls, theaters, or e-learning studios that use multiple destinations to display video. Complex applications that would otherwise require the integration of video switchers, audio mixers, and control panels can be realized using just the XS-1HD. Since settings can be stored, even complex setups can be recalled instantly. The RS-232 control port makes it easy add a third-party control system to the XS-1HD.

Meeting Rooms / Theaters / Churches

The built-in scalers and multiple operation modes make it ideal for use in event spaces since it handles ever changing input source types and resolutions and adapts to different output destination requirements easily. HDCP compliance makes it indispensable when clients want to playback HDCP-protected HDMI signals from sources such as Blu-ray or smartphones. Still images can be loaded from USB and are great for convenient displaying logos.

Online Store

Split mode is ideal for Online Stores that create video content where camera and computer data sources require composition.Since audio can be switched in sync with video transitions, it's easy to combine different types of media from various media playback sources.You can composite up to three PinP screens to engage your audience with a mix of image and video media.For example, you can combine a camera focused on a speaker, a direct feed of your online store and product image overlays.

PANEL LAYOUT

Even with its compact footprint, the XS-1HD lets you operate its powerful functions using only the operation panel. Since HDMI input/output and the controls are integrated into a single unit, it can be used in a variety of situations such as on a small desk or podium, or on a media cart.

  • CROSS-POINT BUTTONS
    These buttons select the input channel for each output. The vertical columns correspond to the input, and the horizontal rows correspond to the output. Buttons are lite-up white when a video signal is present.
  • QUICK EDIT
    This function lets you adjust the video or audio from the operation panel without need to access the menu. You can control settings such as the position and scaling of the image, the location of the PinP inset windows, and the audio volume.
  • HDMI INPUT/OUTPUT
    HDMI connectors allow video and audio (stereo) to be input and output. A scaler and EDID emulator are built-in for each input, and HDCP is also supported, allowing for even rights-protected content to be switched.
  • USB MEMORY PORT
    Settings can be backed up on a USB flash drive. Still images can also be loaded, and instantly displayed when needed.

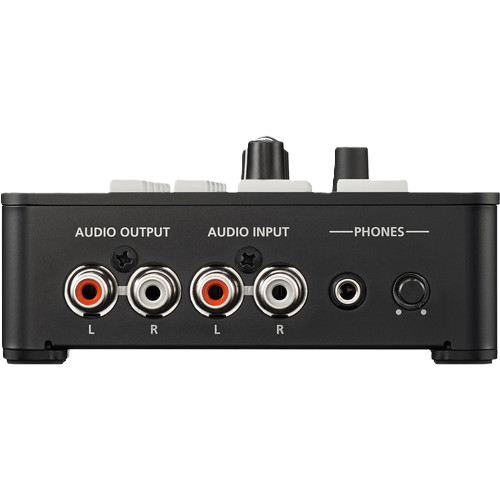

  • AUDIO INPUT/OUTPUT
    Line-level stereo input and output are available and can be mixed with audio that is input via HDMI. Audio embedding and de-embedding are supported, along with audio delay to adjust for lip-sync.
  • REMOTE CONTROL
    Serial control is enabled. It is possible to cooperate with other switchers and mixers and control from the outside.

SCREEN MODES

The XS-1HD provides three screen modes for a variety of applications.In addition to the matrix switcher mode, there's a Switcher mode that lets you use PinP or key-compositing, dissolve transitions and provides a multi-view output, and a Split mode that can display up to three PinP images.

  • MATRIX MODE
    Four input video signals can be individually switched to one of four outputs. Since a scaler is provided for each of the four inputs, you can connect a mix of video devices such as cameras, PCs, media players, Blu-ray discs, or smartphones. You can switch between videos by fading-in/out and can adjust desired transition time using the TIME knob.
  • SWITCHER MODE
    This mode lets you use a cross-dissolve to seamlessly transition between sources, or use PinP or key-compositing. A multi-view input preview can be output from HDMI OUT 4 for confirming input sources while operating the unit.*1 If you're not using PinP or key-compositing, you can use an AUX bus to output a separate video signal to a confidence monitor or other destination.
  • SPLIT MODE
    This mode composites multiple videos into a single screen for output. Up to three small screens can be composited into a background video. The position, size and layering order of the inset screens can be individually set. This is useful when it is required show multiple videos simultaneously, such as when recording e-learning content or presentations.

FUNCTIONS

All contained in a compact format, the XS-1HD includes a switcher, scalers, and audio mixer in a single unit. Additionally, high-quality image processing allows output to large high-resolution screens, without any degradation of quality.

  • High-Quality 4:4:4 10-Bit Processing
    The XS-1HD uses RGB/YPbPr 4:4:4 10-bit signal processing, ensuring that the quality of the video input sources is maintained to the output display especially with data sources. Video that is switched to a large LED display or projector is output with crisp clarity.
  • Digital Audio Mixer
    This allows the HDMI audio and analog stereo input to be mixed. There's also an "audio follow" function that switches the audio in synchronization with video transitions.
  • Internal Scalers
    Each video input is equipped with a scaler that can be set individually. The incoming video input resolution will automatically be matched to the output resolution. The output video can be zoomed to a maximum of 1000.0% and down to 10.0% in detailed 0.1% steps, allowing the video to be properly scaled for the display
  • Test Pattern Generator
    You can output a test pattern that is convenient for adjusting the video output to a projector or large LED display. A selection of various patterns is provided, including color bars, cross-hatch, and ramp. Also included is an animation function that diagonally scrolls the displayed pattern.
  • EDID Emulator
    You can prevent connection problems between video devices by specifying the desired format of EDID. This is convenient in situations such as a banquet or hall, where the computer connected to the XS-1HD is changed throughout the event.
  • Memories
    The current setting of the switcher can be saved into one of sixteen memories. Settings can be saved for specific scenes or configurations, and be easily recalled when needed.

VIDEO

Processing 4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits
Input Connectors HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported
Output Connectors HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported
Formats 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1)(*2), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Effects Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 2 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
Still Image Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed



AUDIO

Sampling Rate 24 bits/48 kHz
Input Connectors HDMI : HDMI type A x 4
AUDIO INPUT : RCA pin type
Output Connectors HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type
Input Level AUDIO INPUT : -10 dBu (Maximum : +8 dBu)
Input Impedance AUDIO INPUT : 15 k ohms
Output Level AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)
Output Impedance AUDIO OUTPUT : 1 k ohm
PHONES : 10 ohms
Formats HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
Processing Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator



OTHERS

External Connectors REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)
Preset Memory 16
*Auto Memory Function
Power Supply AC Adaptor
Current Draw 2.1 A
Power Consumption 25 W
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches
Weight 1.2 kg
2 lbs 11 oz
Accessories Owner's Manual
AC adaptor
Power cord
Notes * 0 dBu = 0.775 Vrms
