36 simultaneous audio channels
The most I/O ever offered in the UltraLite series
You get 2 mic inputs, 2 guitar inputs, 6 line inputs, 8 line outputs, headphone out and 8-channel optical I/O for a total of 18 inputs and 18 outputs, simultaneously. The optical ports also support stereo TOSLink (optical S/PDIF).
Best-in-class analog audio quality
Performance suitable for the most
The UltraLite AVB sets a new standard for analog audio performance in a mobile audio interface. The eight balanced analog outputs deliver a stunning 117 dB dynamic range. This level of measured performance had previously only been available in audio interfaces that cost thousands of dollars.
Class compliant USB 2.0 plus audio over Ethernet
The UltraLite AVB connects to your computer with audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS) for across-the-board compatibility now and in the future. Alternately, if you have a Mac running OS X Yosemite (10.10) or later, you can use a standard Ethernet cable for operation as an audio interface. Either way, the UltraLite AVB is compatible with all audio software.
Console-style mixing with 48 channels and 12 busses
The mixer in the UltraLite AVB is a complete departure from earlier models. In fact, it's identical to the mixer found in MOTU's flagship 1248 and 16A interfaces. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.
UltraLite AVB Feature Summary
18 x 18 USB/AVB audio interface with 36 simultaneous audio channels
2 mic inputs, 2 guitar inputs, 6 line inputs, 8 line outputs, headphone out and 8-channel optical I/O for 18 inputs and 18 outputs.
Best-in-class audio quality
117 dB dynamic range on analog outputs represents best-in-class analog audio performance for mobile recording.
DSP mixing and effects processing
Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to eight network inputs, and DSP effects, including reverb, 4-band EQ, gate, and compression.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
Flexible matrix routing and splitting
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
Stand-alone operation with wireless control
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
Connects to your computer with standard AVB Ethernet or audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS). Compatible with all audio software.
Web app control from any device
Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.
Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai, 24Ao, etc.) with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).
AVB audio networking
Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
The large backlit LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
Mac System Requirements
1 GHz Intel-based Mac or faster
2 GB RAM; 4 GB or more recommended
Mac OS X version 10.8 or later
Available high-speed USB 2.0 or AVB Ethernet port*
A large hard drive (at least 500 GB for recording)
*AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7 or later
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
- MOTU AVB Discovery App for Mac (finds connected MOTU interfaces)
- MOTU AVB Discovery App for iOS (available from Apple App Store)
- MOTU AVB Control web app (served from the hardware itself)
- AudioDesk 4.0 for Mac & Windows (separate download)
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
|Sample rates||44.1, 48, 88.2, 96, 176.4, 192 kHz|
|Mic inputs||2 x XLR mic inputs
Preamp gain: 0 to +56 dB (digitally controlled)
|Analog inputs||2 x 1/4" hi-Z guitar inputs (front panel)
6 x 1/4" TRS line inputs (balanced/unbalanced)
Max level: +24 dBu (digitally adjustable -96 to +22)
|Analog outputs||8 x 1/4" TRS line out (balanced, DC coupled)
Max level: +20 dBu (digitally adjustable -4 to +20)
1 x 1/4" TRS stereo headphone
|Digital I/O||1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
|Total I/O||18 inputs and 18 outputs (36 total) at 1x sample rates
14 inputs and 14 outputs (28 total) at 2x sample rates
10 inputs and 10 outputs (20 total) at 4x sample rates
|Computer I/O||1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite)
|Computer I/O channels||USB 2.0 (44.1 to 48 kHz): 64 in/out
USB 2.0 (88.2 to 96 kHz): 32 in/out
USB 2.0 (176.4 to 192 kHz): 24 in/out
AVB Ethernet: 16 to 128 in/out, depending on
host computer speed
|MIDI I/O||1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host
|Headphone||1 x 1/4" TRS stereo phone (assignable)|
|Phantom power||2 x individual +48V|

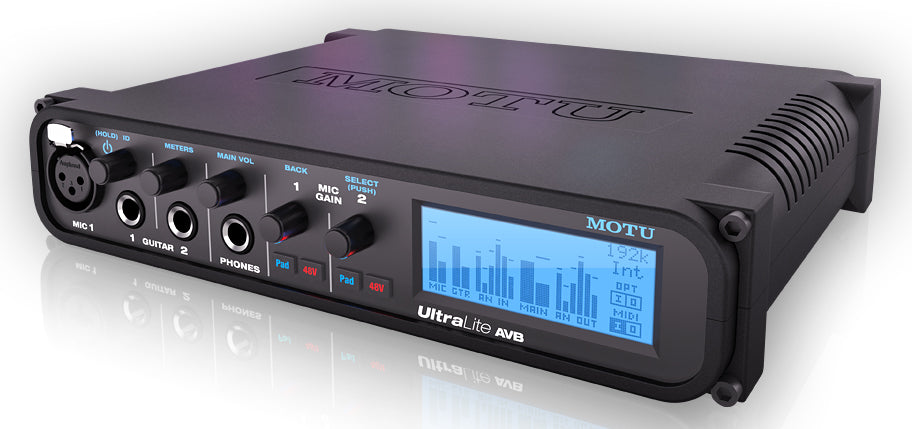

|Front panel||1 x 1/4" TRS headphone output
2 x TRS hi-Z guitar input
1 x digital rotary encoders • main/phone volume
2 x digital rotary encoders • guitar input gain/power
2 x digital rotary encoders • mic preamp gain
4 x switches • (2) Pad and (2) 48V Phantom switch
128 x 48 pixel LCD for level meters / menu nav
|Power||External 12-18V DC power supply
1.0A max • tip pos or neg
Analog I/O Specifications
|Line output||1/4" TRS, balanced, tip hot||117 dB||-101 dB||+20 dBu||24 dB (-4 to +20)|
|Line input||1/4" TRS, bal/unbal, tip hot||110 dB||-102 dB||+24 dBu||118 dBu (-96 to +22)|
|Mic input||XLR, balanced, pin 2 hot||112 dB||-104 dB||+24 dBu
|Phones||1/4", TRS stereo||112 dB||-94 dB||Max. 80 mw||128 dB|
Compatible Mac Software
The UltraLite AVB ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
Compatible Windows Software
The UltraLite AVB ships with standard ASIO and Wave drivers for Windows 7 and 8 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
